Details

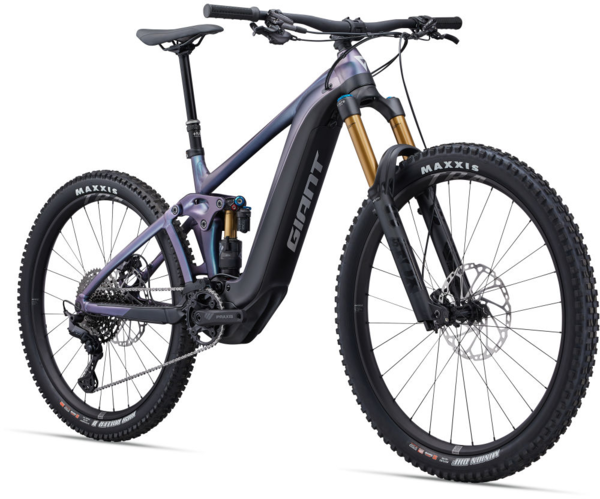

Every trail, every steep climb, every thrilling descent. nothing is out of bounds with the reign e+. tested and developed by giant's e-bike enduro pros, this proven trail ripper gives you the power to enjoy the best parts of the ride again and again.
TRAIL TECHNOLOGY
- Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor boost your capabilities on steep climbs and rugged descents. Progressive geometry with a shorter rear end and longer reach allow superior handling and agility on technic
TOTAL CONTROL
- RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.
LONG-LASTING POWER
- Climb steep mountains and enjoy ripping descents all day long with the new downtube-integrated EnergyPak battery system featuring 800Wh of capacity.
ALUXX SL ALUMINUM TECHNOLOGY
- This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
ENERGYPAK PLUS
- This range extender can boost total capacity by 250Wh. It has all the latest technologies combined with an up-to-date design that fits a select number of bikes. It has smart technology so it automatically turns on when your battery loses power, giving you peace of mind that you can reach your destination.
RIDECONTROL GO
- Available on premium Giant E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Colored LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.
RIDECONTROL ERGO 3
- This updated control system features clean buttons that are integrated with the handlebar grips. You can install the three-button control on the left or right side, making it easy to switch power modes. You also have the option of adding a second control on the other side. Using the RideControl App, you can configure it to your own personal preferences.
SYNCDRIVE PRO
- SyncDrive Pro powered by Yamaha is designed for high-performance E-bike riding. Giant tuned the motor to make it more powerful, producing a performance-oriented riding style. The lightweight, compact SyncDrive Pro motor is used primarily on Giant's high-performance models.
SIZE | Small | Medium | Large | X-Large |
---|---|---|---|---|
A - Seat Tube Length (mm) | 400 | 425 | 450 | 475 |
A1 - Seat Post Insertiondepth (mm) | 230 | 260 | 280 | 310 |
B - Seat Tube Angle (°) (HI | LO) | 76.7° | 77.5° | 76.7° | 77.5° | 76.7° | 77.5° | 76.7° | 77.5° |
C - Top Tube Length (mm) (HI | LO) | 569 | 568 | 595 | 594 | 622 | 621 | 649 | 648 |
D - Head Tube Length (mm) | 100 | 100 | 110 | 120 |
E - Head Tube Angle (°) (HI | LO) | 63.7° | 64.5° | 63.7° | 64.5° | 63.7° | 64.5° | 63.7° | 64.5° |
F - Fork Rake (mm) | 44 | 44 | 44 | 44 |
G - Trail (mm) (HI | LO) | 135.5 | 132.1 | 135 | 132 | 135 | 132 | 135.5 | 132.1 |
H - Wheelbase (mm) (HI | LO) | 1209 | 1210 | 1236 | 1237 | 1265 | 1266 | 1295 | 1296 |
I - Chain Stay Length (mm) (HI | LO) | 457 | 455 | 454 | 454 | 454 | 454 | 454 | 454 |
J - Bottom Bracket Drop (mm) (HI | LO) | 25 | 15 | 25 | 15 | 25 | 15 | 25 | 15 |
K - Stack (mm) (HI | LO) | 636 | 632 | 635 | 632 | 645 | 641 | 654 | 650 |
L - Reach (mm) (HI | LO) | 425 | 430 | 450 | 455 | 475 | 480 | 500 | 505 |
M - Stand Over Height (mm) (HI | LO) | 785 | 789 | 772 | 776 | 771 | 775 | 768 | 772 |
N - Handlebar Width (mm) | 800 | 800 | 800 | 800 |
O - Stem Length (mm) | 40 | 40 | 40 | 50 |
P - Crank Length (mm) | 160 | 160 | 165 | 165 |
Q - Wheel Size | [F] 29" [R] 27.5" | [F] 29" [R] 27.5" | [F] 29" [R] 27.5" | [F] 29" [R] 27.5" |
Specs
Frame | ALUXX SL-grade aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, Universal Derailleur Hanger |
---|---|
Fork | Fox 38 Float Factory GRIP 2 Air 170 matt black 1111-38FLOA-0024 |
Rear Shock | Fox X2 Factory, EVOL Large Volume sleeve, 205x62.5mm Trunnion mount, custom tuned, recommended sag: 30% |
Rims | Giant TRA, Hookless Clincher, 30mm inner width, Hollow Side-Wall Design for improved strength and flat protection |
Hubs | Giant TRA, E-Drive 260Nm 6-Pawl Driver, 72T engagement, MicroSpline body, 110 x 15 [F], 148 x 12 [R] Thru-axle |
Spokes | Sapim E-Lite [R] Race [F], e-bike optimized |
Tires |
Front: Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra Rear: Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound |
Crankset | Shimano Steps E-bike SM-CRE80-R 47T alloy chainring Shimano Steps E-bike FC-EM600 crankarm 165mm [S], 170mm [M-XL] |
Shifters | Shimano XT LinkGllide |
Rear Derailleur | Shimano XT LinkGlide 11-speed, Shadow+ |
Cassette/Freewheel | Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed |
Chain | Shimano LinkGlide, CN-LG500 |
Brakes | Shimano XT, BR-8120, 4-piston, hydraulic disc, RT66, 220mm |
Brake Levers | Shimano XT, I-spec EV |
Handlebars | Giant Contact Trail, 35x800mm |
Tape/Grips | Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL) |
Stem | Giant Contact SL 35 |
Seatpost | Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm) |
Saddle | Velo VL3594 |
Pedals | Flatpedal |
Accessories & Extras | MRP HD2 co-moulded chain guide |
Motor | Giant SyncDrive Pro2 85Nm,PedalPlus 6-Sensor technology |
Battery | Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral productionGiant EnergyPak Plus 250 range extender compatible (exculde S size) |
Controller/Display | Giant RideControl Ergo3, grip integrated remote / Giant RideControl GO, frame integrated LED consoleOptional wireless ANT+ display |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Blue Dragonfly / Small | 04712878922389 | 5460000104 | GIA2650984Y |
Blue Dragonfly / Medium | 04712878922396 | 5460000105 | GIA26907665Y |
Blue Dragonfly / X-Large | 04712878922419 | 5460000108 | GIA27221483Y |
