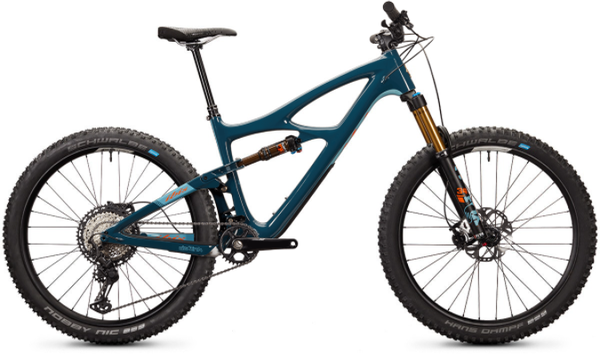

Ibis Mojo 4
Details
The word Mojo refers to a magic spell or charm, and more broadly - a magical power. Since its introduction in 1994, the Mojo has delivered a wicked combination of fun and all-mountain prowess.
GEOMETRY
The Mojo V4 features a 76.6-degree, get-you-up-that-hill seat tube angle, our shortest chainstays, and a spacious reach with a 65.4-degree headtube angle. This enchanting combination rolls on 27.5” wheels, to deliver that hoverbike feel with on-trail confidence.
DW-LINK
Since 2005, we’ve partnered with suspension guru Dave Weagle on the dw-link suspension platform. It provides an unparalleled combination of climbing efficiency and downhill performance, which has been proven repeatedly at the highest levels of racing.
TRACTION TUNE
Our custom-tuned suspension features extra light high-speed compression and rebound damping to deliver unparalleled traction. When paired with our dw-link suspension platform, Traction Tune allows the Mojo to track like a big bike without compromising crisp pedaling performance.
PICK YOUR SIZE
All four sizes have low standover heights and shortened seat tubes for long dropper posts. Now you can choose your frame based on reach?—?riders 5-feet tall easily fit on a small and still enjoy a 125mm dropper, while most medium and up riders can enjoy a 185mm. All sizes fit a water bottle, and those looking to go packless can run our aftermarket Pork Chop bag.
FORK OFFSET
Reduced-offset forks give the front wheel greater stability at speed and an additional sense of steadiness at slow speeds too. The Mojo is designed to excel in technical, demanding terrain, and the 37mm-offset gives that extra bit of confidence and control in the most challenging situations.
TIRE CLEARANCE
The Mojo has clearance for 27.5”x2.6” tires. You can run overbuilt, chunky tires; you can run light, big volume fast tires, but whatever you run, know that you’re not limited by width.
Specs
Fork | Rock Shox Pike Ultimate RC2 140mm, 27.5”, 110x15 |
---|---|
Headset | Cane Creek 40 ZS44/ZS56 |
Rear Shock | Fox Float Factory Series, DPS with EVOL, 210 x 50 S/M: Light Tune, L/XL: Standard |
Rims/Wheels | Ibis S35 Aluminum / 27.5" / Ibis Hubs |
Hubs | Ibis Hubs |
Tires | Schwalbe Hans Dampf 27.5" x 2.6" Addix Soft Super Trail (front), Schwalbe Nobby Nic 27.5" x 2.6" Addix Speedgrip Super Trail (rear) |
Crankset | Shimano XT M8100, 30t Alloy Ring S/M: 170mm, L/XL: 175mm |
Chainwheel | Shimano XT M8100, 30t Alloy Ring |
Bottom Bracket | Shimano XT MT800 |
Chain | Shimano XT M8100 12 speed |
Rear Derailleur | Shimano XT M8100 Shadow Plus 12 speed |
Rear Cogs | Shimano XT 10-51 |
Shifters | Shimano XT M8100 12 speed |
Handlebars | Ibis 800mm Carbon; Lo-Fi (S–M), Hi Fi Bar (L–XL) |
Tape/Grips | Lizard Skin Charger |
Stem | Industry Nine A318 S/M: 40mm, L/XL: 50mm |
Brake Levers | Shimano XT M8120 4p |
Brakes | Shimano SM-RT86 180 |
Saddle | WTB Silverado 142 |
Seat Post | Bike Yoke Revive Dropper S: 125mm, M: 160mm, L/XL: 185mm. Note there is a 250lb rider weight limit on this post. |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Blue / Shimano XT / Medium / IBIS S35 Carbon rims / 27.5" | MOJO4-BLUE-MED-XT | IBI32415067M |
