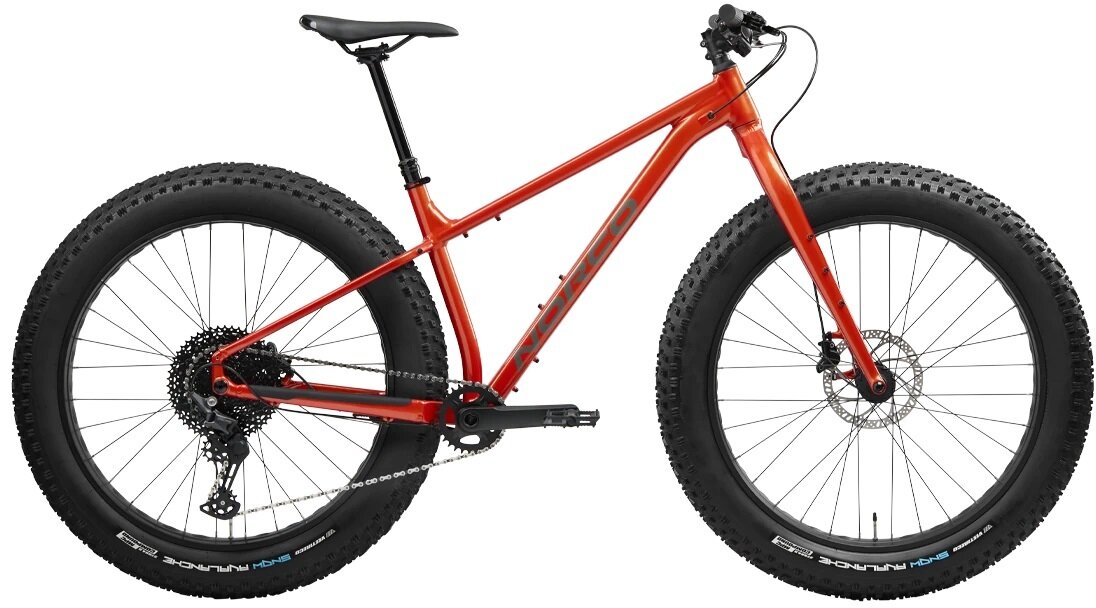

Norco Bigfoot 3 Hydro

Norco Bigfoot 3 Hydro
  • Color: Green
  • Color: Orange/Grey
$1,549.00
Color:
Size: Select size
Please select options Unavailable
Order now and pick up in-store for free

Details

ALL SEASON EVOLUTION

Balanced weight distribution for maximum traction and a powerful pedaling position keep the Bigfoot 3 charging forward all year. Featuring hydraulic disc brakes and a dropper seat post.

The redesigned Bigfoot elevates fat bike performance to downright fun, anywhere, anytime.

The confident, aggressive handling tracks precisely where you want on a descent or technical trail, and the simple one-by drivetrain offers reliable, simple shifts with gloved hands.

With maximum traction in the most extreme riding conditions imaginable, Bigfoot claws its way up, and the finely tuned steering geometry and massive tires provide confident, aggressive handling to rip back down.

The Bigfoot excels in all-season weather and extreme terrain to make every ride big fun.


PROGRESSIVE DESIGN

Built from the powder-up with our holistic approach to fit & geometry.

A combination of longer reach, slack head tube angle and steep seat tube angle gives every Bigfoot a powerful pedal position, increased climbing traction and added control when descending.


FAT’S WHERE IT’S AT

75mm wide 27.5” rims and frame clearance for up to 4.6" tires to put more rubber onto whatever surface you're riding and allow for lower pressures and greater traction.


FRAME FEATURES

Evolved, thoughtful details make it even better.

Generous standover clearance and extra stiffness provided by 12x197mm thru-axles and internally routed cables make the Bigfoot’s aluminum frame ideal for extreme terrain.


WINTER RIDER

Optimized for the cold, capable year-round.

All models feature disc brakes with DOT fluid or cable actuation for consistent performance over varying temperatures. When included, dropper posts are spec’d for reliable cold weather performance.


MULTI-FUNCTIONAL

Frame details add versatility.

Rack mounts in the rear, bottle mounts above and beneath the down tube and triple mounts on the fork give you the option of running a barebones setup or loading up for a massive excursion.


STANDOVER HEIGHT

Top tube clearance is critical in fat biking.
Getting off the pedals in deep snow requires lots of space over the top tube. Bigfoot strikes a perfect balance between max clearance and making space for a frame bag in the front triangle.

Geo Chart

Geometry Chart:
SizeSmallMediumLargeX-Large
Reach (mm) 410 440 470 500
Stack (mm) 612 612 621 631
Head Tube Angle 69 69 69 69
Fork Offset 51 51 51 51
Seat Tube Length (mm) 400 425 450 500
Effective Seat Tube Angle 74 74 74 74
Rear Centre Length (mm) 440 440 440 440
Bottom Bracket Drop (mm) 59 59 59 59
Bottom Bracket Height (mm) 332 332 332 332
Horizontal Top Tube (mm) 586 616 648 681
Wheelbase (mm) 1113 1143 1177 1210
Standover (mm) 675 676 690 718
Head Tube Length (mm) 100 100 110 120
Trail (mm) 95 95 95 95
Recommended Seatpost Drop (mm) 100 125 150 150
Maximum Post Insertion (mm) 215 240 280 320
Stem Length (mm) 50 50 50 50
Crank Length (mm) 170 175 175 175
Tire Size (IN) 4.0" – 4.6" 4.0" – 4.6" 4.0" – 4.6" 4.0" – 4.6"
Sizes:
Frame SizeHeight (inches)Height (cm)
Small 5'1” - 5’5” 155 - 165cm
Medium 5’4” - 5’8” 164 - 174cm
Large 5’8” - 6’0” 172 - 182cm
X-Large 6’0” - 6’3” 181 - 191cm

Specs

Frame Butted X6 Aluminum
Fork 6061 Aluminum
Rims Alloy TR, 27.5", 32H
Hubs Front: Sealed Bearing, 15x150mm, 6 Bolt
Rear: Sealed Bearing, 12x197mm, HG, 6 Bolt
Spokes Stainless 14g, Black
Tires Vee Snow Avalanche TLR, 4.5", Studdable
Bottom Bracket External, BSA Threaded
Crankset Samox Alloy, 30T
Shifters Shimano Deore SL-M5100
Rear Derailleur Shimano Deore RD-M5100
Cassette/Freewheel Sunrace CMX8, 11/51T, 11 Speed
Chain KMC X11
Brakes Tektro MD-280 Mechanical, Organic Pads
Rotors Front: Tektro, 180mm
Rear: Tektro, 160mm
Brake Levers Tektro Alloy
Handlebars Butted 6061 Alloy, 760mm, 15mm Rise
Tape/Grips VP Lock-On
Stem Alloy, 50mm Length, 31.8mm Clamp
Headset Sealed Bearing, Tapered
Seatpost Norco Alloy 31.6
Saddle Norco XC
Pedals VP Nylon Flat

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Orange/Grey / Small 0683313754 NOR40323823S
Green / Small 0683323754 NOR32881601S
Orange/Grey / Medium 0683313755 NOR40515141M
Orange/Grey / Large 0683313756 NOR41851284L
Orange/Grey / X-Large 0683313757 NOR42945262L
Green / Medium 0683323755 NOR32888333M
Green / Large 0683323756 NOR32518280L
Green / X-Large 0683323756
