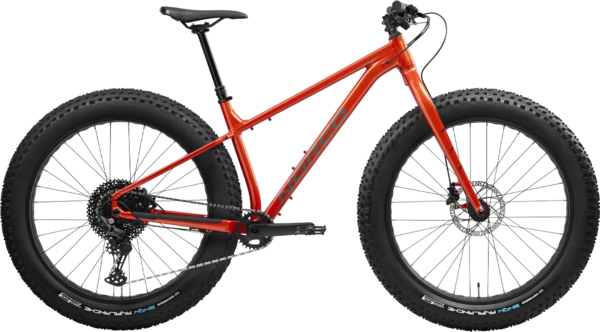

Norco Bigfoot 3 Hydro

Norco Bigfoot 3 Hydro
  • Color: Orange/Gray
  • Color: Green
$1,549.00
Color:
Size: Select size
Please select options Unavailable
Order now and pick up in-store for free

Details

The confident, aggressive handling tracks precisely where you want on a descent or technical trail, and the simple one-by drivetrain offers reliable, simple shifts with gloved hands.

- Evolved, thoughtful details make it even better.
- Built from the powder-up with?our holistic approach to fit & geometry.
- 27.5x4.5” tires for max traction and floatation in the deep stuff.
- Top tube clearance is critical in fat biking.
- Frame details add versatility.
- Optimized for the cold, capable year-round.
- No Other Way Limited Lifetime Warranty.

Sizes:
Frame SizeSMLXL
Wheel Size (in) 27.5" 27.5" 27.5" 27.5"
Reach (cm) 410 440 470 500
Stack (cm) 612 615 621 631
Head Tube Angle (HTA) (degrees) 69° 69° 69° 69°
Fork Offset (OS) (cm) 51 51 51 51
Seat Tube Length (ST) (cm) 400 425 450 500
Effective Seat Tube Angle (STA) (degrees) 74° 74° 74° 74°
Rear Centre Length (RC) (cm) 440 440 440 440
Bottom Bracket Drop (BB) (cm) 59 59 59 59
Bottom Bracket Height (BBH) (cm) 332 332 332 332
Horizontal Top Tube (HTT) (cm) 586 616 648 681
Wheelbase (WB) (cm) 1113 1143 1177 1210
Standover (SOH) (cm) 675 676 690 718
Head Tube Length (HT) (cm) 100 100 110 120
Trail (cm) 95 95 95 95
Recommended Seatpost Drop (cm) 100 125 150 150
Maximum Post Insertion (cm) 215 240 280 320
Stem Length (cm) 50 50 50 50
Crank Length (cm) 170 170 175 175
Tire Size (in) 4.0" – 4.6" 4.0" – 4.6" 4.0" – 4.6" 4.0" – 4.6"
Water Bottle Compatible 2 x 750 mL 2 x 750 mL 2 x 750 mL 2 x 750 mL
Frame SizeRider Height INRider Height CM
S 5'11" - 5'5" 155 - 165
M 5'4.5" - 5'8.5" 162.5 - 172.5
L 5'8" - 6'0" 172.5 - 182.5
XL 5'11.5" 182.5 - 192.5

Specs

Frame Butted X6 Aluminum
Fork 6061 Aluminum
Rims Alloy TR, 27.5", 32H
Hubs Front: Sealed Bearing, 15x150mm, 6 Bolt Rear: Sealed Bearing, 12x197mm, HG, 6 Bolt
Spokes Stainless 14g, Black
Tires Vee Snow Avalanche TLR, 4.5", Studdable
Bottom Bracket External, BSA Threaded
Crankset Samox Alloy, 30T, 170mm (S), 175mm (M, L, XL)
Shifters Shimano Deore SL-M5100
Rear Derailleur Shimano Deore RD-M5100
Cassette/Freewheel Sunrace CMX8, 11/51T, 11 Speed
Chain KMC X11
Brakes Tektro HD-M275 Hydraulic, Resin Pads
Rotors Front: Tektro, 180mm Rear: Tektro, 160mm
Brake Levers Tektro HD-M275
Handlebars Butted 6061 Alloy, 760mm, 15mm Rise
Tape/Grips VP Lock-On
Stem Alloy, 50mm Length, 31.8mm Clamp
Headset Sealed Bearing, Tapered
Seatpost TranzX YSP18 Dropper, 31.6mm, 130mm (S, M), 150mm (L, XL)
Saddle Norco XC
Pedals VP Nylon Flat

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Orange/Gray / Small 058817732331 0683313754 NOR40323823S
Orange/Gray / Medium 058817732355 0683313755 NOR40515141M
Orange/Gray / Large 058817732362 0683313756 NOR41851284L
Orange/Gray / X-Large 058817732386 0683313757 NOR42945262L
Green / Small 058817732409 0683323754 NOR32881601S
Green / Medium 058817732423 0683323755 NOR32888333M
Green / Large 058817732430 0683323756 NOR32518280L
Green / X-Large 058817732478 0683323757 NOR34343511L
