Details

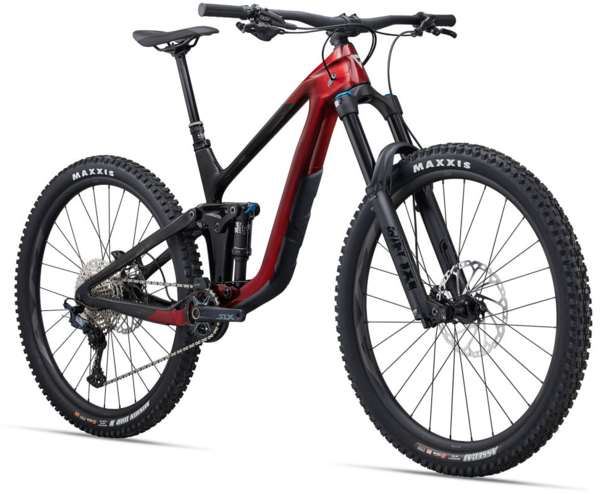

Go fast, get rowdy and nail new lines. With a full-composite chassis, developed with Giant's enduro racing pros, this hard-charging 29er has 160mm of maestro rear suspension, adjustable geometry, and the option to switch to a 27.5-inch rear wheel.
KEY PERFORMANCE FACTORS:
- Race-bred suspension
A Maestro rear suspension system with 160mm of travel, paired with a 170mm fork, was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous gene
- Adjustable enduro geometry
Flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size
- Rear wheel options
Riders can choose either the stock 29-inch rear wheel or switch to 27.5. The larger 29-inch option improves stability and roll-over capabilities, while 27.5 delivers a more agile, snappier feel. It's a quick and easy way to adjust the bike's handling.
TECHS & FEATURES:
- ADVANCED COMPOSITE TECHNOLOGY
Giant's High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
- ADVANCED FORGED COMPOSITE TECHNOLOGY
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
- MAESTRO SUSPENSION TECHNOLOGY
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
- OVERDRIVE
Giant's original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system's oversized headset bearings (1 1/4" lower and 1 1/8" upper for road, 1 1/2" lower and 1 1/8" upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
- TUBELESS SYSTEM
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant's Tubeless System makes it easier than ever to experience all these benefits.
- FLIP CHIP - MAESTRO
The flip chip allows riders to quickly adjust the geometry of their Maestro-equipped mountain bike to better suit how and where they ride. It lets riders change the headtube/seattube angles and bottom bracket height via eccentric (offset, two-position) hardware located on the upper rocker arm.
M | L | XL | ||
---|---|---|---|---|
A | SEAT TUBE LENGTH (mm) | 425 | 450 | 475 |
A1 | SEATPOSTINSERTIONDEPTH (mm) | 287 | 312 | 337 |
B | SEAT TUBE ANGLE | 78.3° | 78.7° | 79.0° | 77.3° | 77.7° | 78.0° | 77.3° | 77.7° | 78.0° |
C | TOP TUBE LENGTH (mm) | 587 | 586 | 585 | 620 | 620 | 619 | 652 | 652 | 651 |
D | HEAD TUBE LENGTH (mm) | 105 | 115 | 120 |
E | HEAD TUBE ANGLE | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° |
F | FORK RAKE (mm) | 44 | 44 | 44 |
G | TRAIL (mm) | 140 | 138 | 135 | 140 | 138 | 135 | 140 | 138 | 135 |
H | WHEELBASE (mm) | 1246 | 1245 | 1244 | 1271 | 1270 | 1269 | 1304 | 1303 | 1302 |
I | CHAIN STAY LENGTH (mm) | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 |
J | BOTTOM BRACKET DROP (mm) | 35 | 30 | 25 | 35 | 30 | 25 | 35 | 30 | 25 |
K | STACK (mm) | 632 | 629 | 626 | 641 | 638 | 635 | 645 | 642 | 639 |
L | REACH (mm) | 456 | 460 | 464 | 476 | 480 | 484 | 506 | 510 | 514 |
M | STAND OVER HEIGHT (mm) | 735 | 739 | 744 | 751 | 756 | 760 | 746 | 751 | 756 |
N | HANDLEBAR WIDTH (mm) | 800 | 800 | 800 |
O | STEM LENGTH (mm) | 40 | 40 | 40 |
P | CRANK LENGTH (mm) | 170 | 170 | 170 |
Q | WHEEL SIZE | [F] 29" [R] 29" | [F] 29" [R] 29" | [F] 29" [R] 29" |
Specs
Frame | Advanced-grade composite front and rear triangles, 160mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated downtube storage |
---|---|
Fork | Fox 38 Rhythm, 170mm, GRIP damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant |
Rear Shock | Fox Float Performance, 205/62.5, custom tuned for Giant |
Rims | Giant AM 29, alloy |
Hubs | alloy, sealed |
Spokes | Stainless steel |
Tires | [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, DD, TR tubeless |
Bottom Bracket | Shimano, press fit |
Crankset | Shimano SLX, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm |
Shifters | Shimano SLX SL-M7100, 1x12 |
Rear Derailleur | Shimano SLX RD-M7100 |
Cassette/Freewheel | Shimano Deore M6100, 10x51 |
Chain | Shimano |
Brakes | Shimano BR-MT520, hydraulic, Shimano RT-66 rotors [F]220mm, [R]200mm |
Brake Levers | Shimano Deore BL-MT501 |
Handlebars | Giant Contact TR35, 800x35mm, 20mm rise |
Tape/Grips | Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm |
Stem | Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm |
Seatpost | TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm |
Saddle | Giant Romero SL |
Pedals | platform [GC,GT] |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Sangria/Carbon / Small | 04712878971899 | 1077002104 | GIA33734228N |
Sangria/Carbon / Medium | 04712878971905 | 1077002105 | GIA3388331N |
Sangria/Carbon / Large | 04712878971912 | 1077002107 | GIA33221988N |
Sangria/Carbon / X-Large | 04712878971929 | 1077002108 | GIA3461833N |
